Time Saver Accessories / Attachments / Options are available to our customers as a Value Added Service. These accessories are Nortec approved.
Nortec Accessories / Attachments / Options are tested along with our normal engineering testing and development of our product line. There designed and offered to our customer to make there life easier and less stressful. The product offering is very $ price competitive. One Huge Value Added factor is, like with all accessories you may have a question or two. Nortec is here to help you out with any questions or concerns. A simple call to our Product Support Center (715-623-6300) will answer all your questions.
Nortec Accessories / Attachments / Options are tested along with our normal engineering testing and development of our product line. There designed and offered to our customer to make there life easier and less stressful. The product offering is very $ price competitive. One Huge Value Added factor is, like with all accessories you may have a question or two. Nortec is here to help you out with any questions or concerns. A simple call to our Product Support Center (715-623-6300) will answer all your questions.
Adjustable Top Link Bracket is Standard Equipment
| literature_nortec_quick_hitch.pdf |
With the Nortec Time Saver Quick Hitch you never have to leave the tractor because the lower hooks automatically lock the implement into place. Safe - Efficient - Fast
Nortec Time Saver Quick Hitches are one of the biggest time saving innovations you can find for a tractor. With a quick hitch adapter and a quick hitch compatible attachment, you can change rear tractor attachments in a matter of seconds.
The most common 3 Point Hitch has not changed in the last 30 years. The 3 Point Hitch is a love-hate relationship. Attaching an implement can be challenging at times. In some cases it take two people to hook the implement to the tractor's 3-point. We have all been there. Backing up and attempting to hook up to the attachment only to find out your lower draft arms are bellied in. Which means an alignment problem. In some cases this requires another person to hold the arm out so connection can be made. If you're not on level ground, now you encounter that the left and right draft arm pins do not line up. Meaning one side is lower than the other. You are now facing another challenge. This issue may be solved by man-handling the attachment by getting the pry bar out, pulling it into place or re-adjusting the lower draft arm. Which means once the attachment is installed the adjustments are off. That means a trip to a more level surface to re-adjust. At this point you may be thinking there has to be a better way and there is! The Nortec Time Saver Quick Hitch. It's a matter of backing up and clawing into the Time Saver Hitch, it's that easy. In fact, the lower draft arm will auto connect. No need to get off the tractor and push the levers down. Not only is this system a time saver it's also safe, no more pinched or cut fingers.
Special Note: Some attachment manufacturers are not following or designing into their attachment SAE standards. Specifications on the implement / attachment are not always correct. In this case it's impossible to use the Time Saver Quick Hitch. Most quality main line attachment manufacturers engineer and design their implements to accept a Quick Hitch.
What is the difference between Category 1 and 2 tractors?
The lower lift arms on a 3 point hitch cat 1 are 26" wide, with the top link being 18 inches above the center line, between the two lower lift arms. The lower lift pins are 7/8" in diameter, and the top link pin is 3/4". The cat 1 hitch is used on tractors from 20-45 hp. A cat 2 hitch is 32" wide. The top link is located 24" above the center line between the two lower lift pins. The lower lift pins are 1-1/8" inch in diameter. The top link pin is 1" in diameter. The larger Cat 2 hitch is designed for use with tractors ranging from 40-100 hp.
The lower lift arms on a 3 point hitch cat 1 are 26" wide, with the top link being 18 inches above the center line, between the two lower lift arms. The lower lift pins are 7/8" in diameter, and the top link pin is 3/4". The cat 1 hitch is used on tractors from 20-45 hp. A cat 2 hitch is 32" wide. The top link is located 24" above the center line between the two lower lift pins. The lower lift pins are 1-1/8" inch in diameter. The top link pin is 1" in diameter. The larger Cat 2 hitch is designed for use with tractors ranging from 40-100 hp.
Common Question: Does a 3 point hitch float?
The 3 pt hitch is always in float because the weight of the implement provides the down-force. The round knob (between the seat) will adjust the drag factor on the 3 point hitch bars and they quickly drop.
The 3 pt hitch is always in float because the weight of the implement provides the down-force. The round knob (between the seat) will adjust the drag factor on the 3 point hitch bars and they quickly drop.

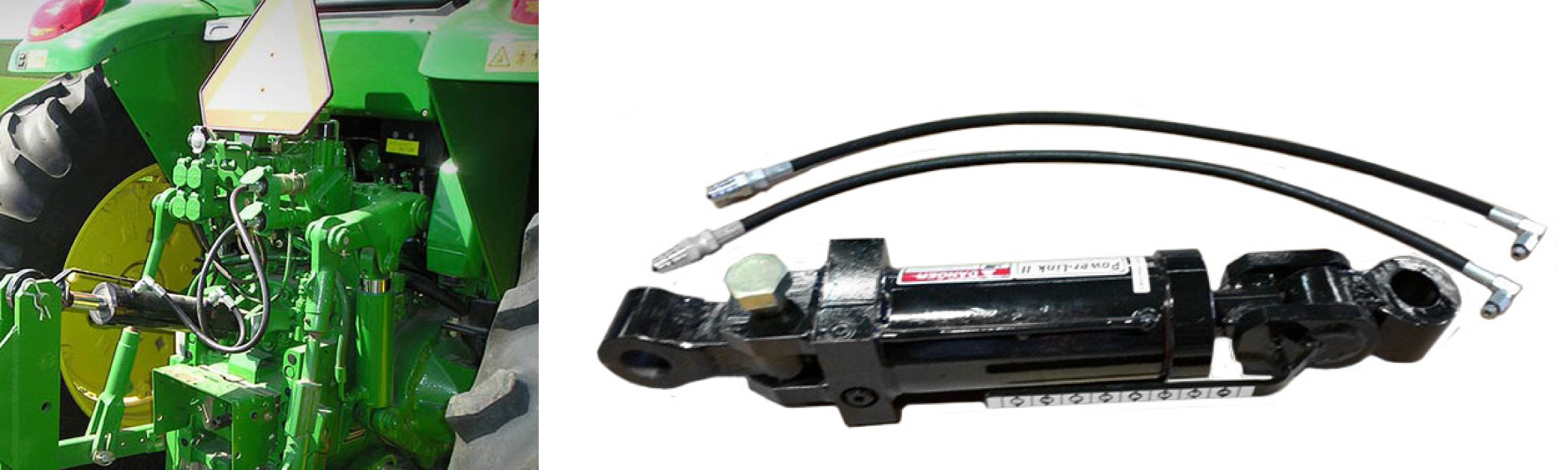

A Power Link is a hydraulic top link can be adjusted from the operator's seat, so there's
no more getting on and off your tractor to make adjustments.
no more getting on and off your tractor to make adjustments.
Special Note: Tractor requires a rear SCV (hydraulics 2-function)
Hydraulic Cylinders Requires hose and fittings. Cylinder port is SAE #8
Tired of manually adjusting the 3rd link? No more trips back and forth between the cab and the back of your tractor. Once installed, make all your 3rd link adjustments from the seat of your tractor.
Adjust the pitch of cultivators, planters, or any 3-point mounted equipment on the go. Provide extra clearance on end rows or ditches. Makes hooking up a one-person operation. No more up and down and prying, trying to align an implement. Attaching 3-point mowers allows for quick and easy installation.
